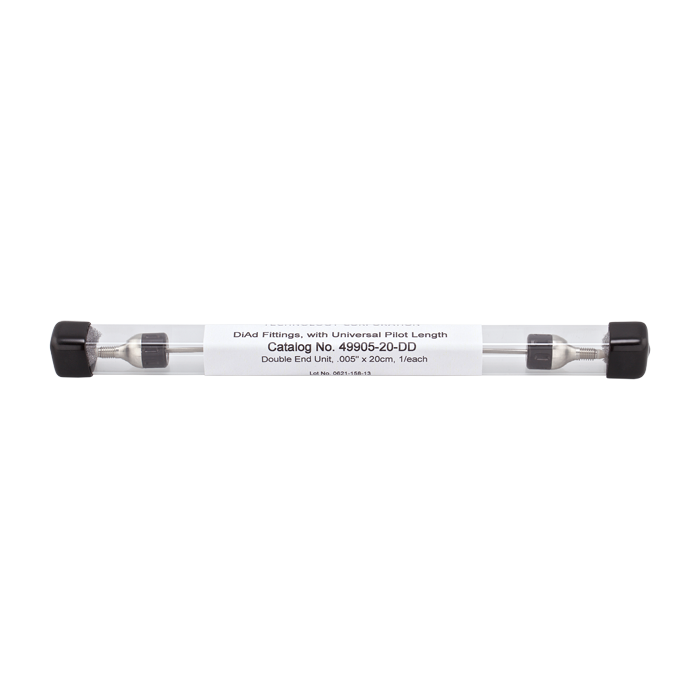

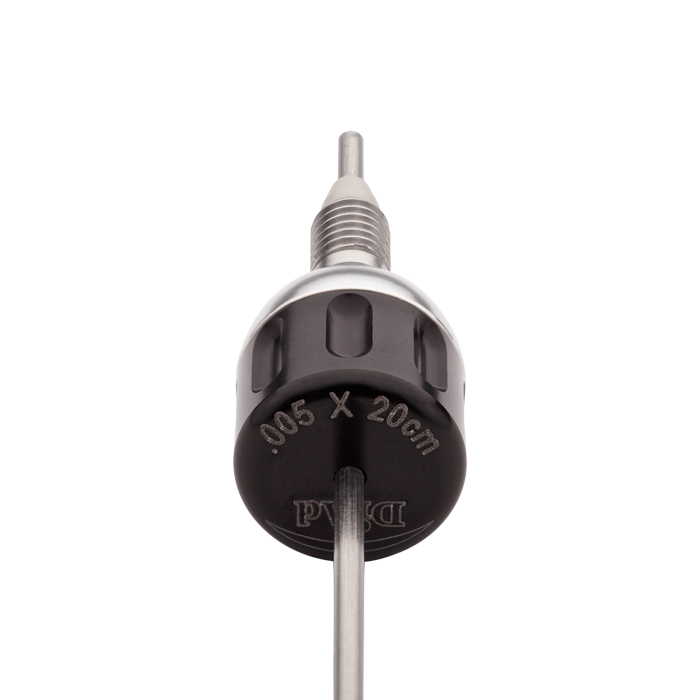

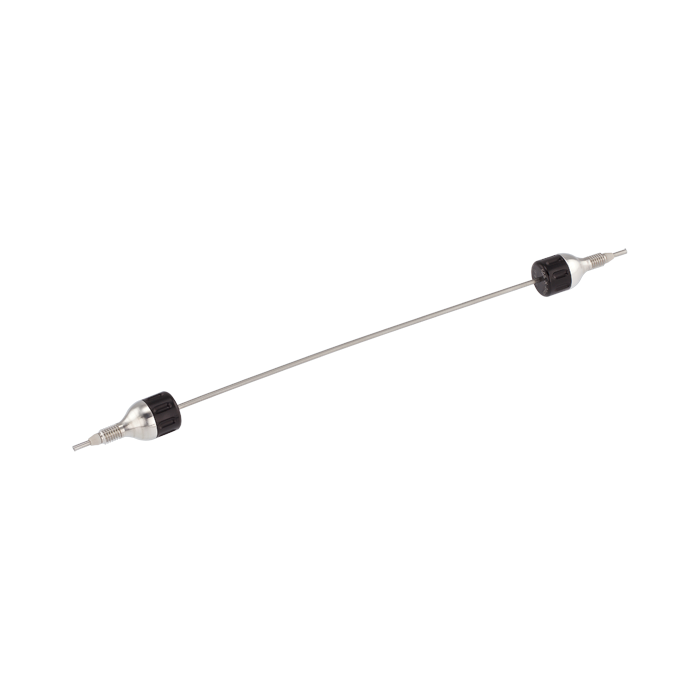

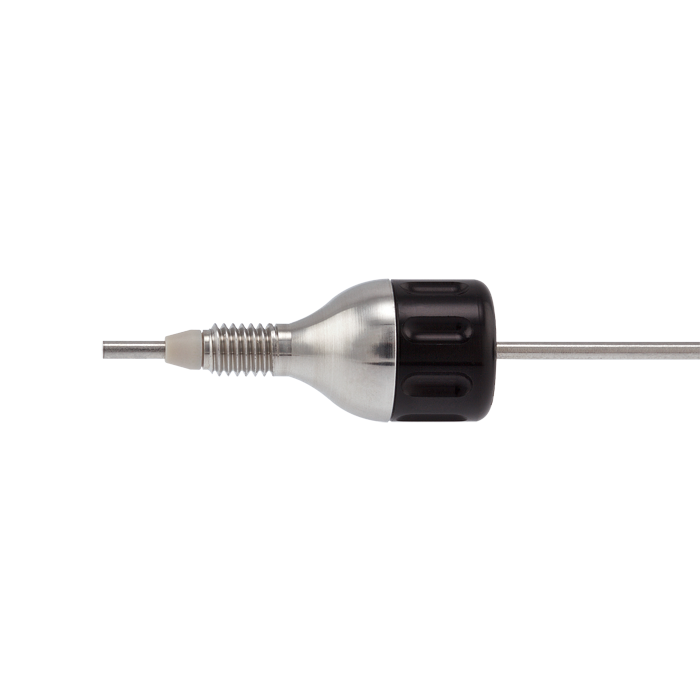

Direct Adaptive HPLC Column Connector, double end fitting with 0.005" ID x 1/16th" OD, 200 mm long stainless steel tubing. MICROSOLV Brand. 1 EA.
Additional Info:
Direct Adaptive (Di‑Ad™) HPLC Column Connectors are designed to provide reliable, low dead volume connections between HPLC system components and analytical columns without requiring repeated ferrule adjustments when changing column brands.
The 49905‑20‑DD connector includes precision laser‑cut 0.005" (127 µm) ID stainless steel tubing with a 1/16" OD and 200 mm (7.87") length for optimized chromatographic performance and reduced extra‑column dispersion.
This double‑end fitting delivers a near zero dead volume connection to virtually any brand of HPLC column, helping minimize system volume induced band broadening for improved chromatographic efficiency while making column changes easier and more convenient between runs.

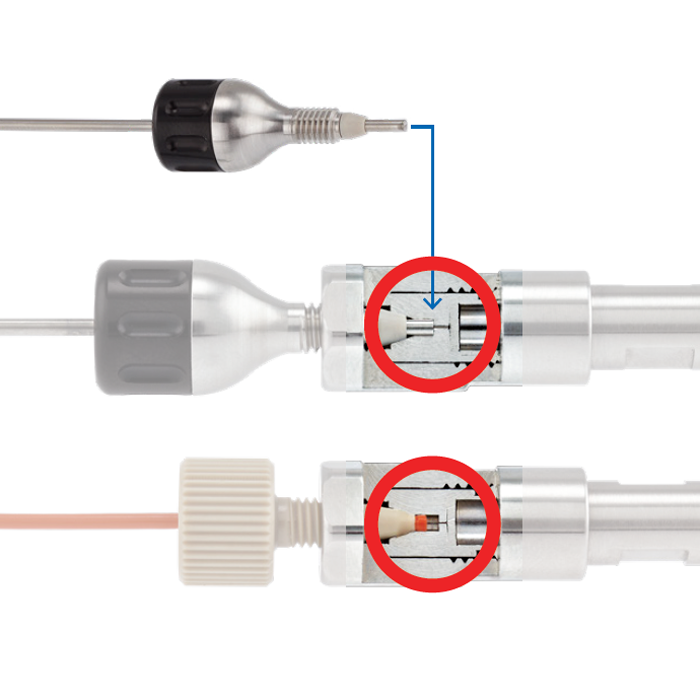

The spring‑loaded Di‑Ad™ fittings automatically adjust tubing pilot length during installation, helping ensure a tight seal with minimal void volume across different HPLC column inlet and outlet geometries. This self‑adjusting design eliminates the need to repeatedly reposition ferrules or re‑swage tubing each time a different column brand is installed.
These connectors are commonly installed between the injector and the column inlet as well as between the detector and the outlet side of the column to help maintain system efficiency and reduce extra‑column effects.
The double‑ended Di‑Ad™ design is especially useful in laboratories that routinely switch between different HPLC column brands while requiring consistent low dispersion performance and simplified operation.
Key Benefits
Direct Adaptive (Di‑Ad™) self‑adjusting fitting design
Double‑end fitting configuration
Near zero dead volume connection
Minimizes extra‑column band broadening
Compatible with virtually any HPLC column brand
Precision laser‑cut tubing ends
Simplifies routine column changes
Eliminates repeated ferrule repositioning
Suitable for analytical HPLC applications
Chemically resistant stainless steel construction
High‑pressure performance up to 10,000 psi
Specifications
Product Type: Direct Adaptive HPLC column connector
Brand: MICROSOLV
Fitting Style: Double end
Tubing Material: Stainless steel
Tubing ID: 0.005" (127 µm)
Tubing OD: 1/16"
Tubing Length: 200 mm (7.87")
Pressure Rating: 10,000 psi
Solvent Compatibility: HPLC solvent resistant
Pack Size: 1 each
Applications
Analytical HPLC systems
Low dead volume fluidic connections
Injector‑to‑column connections
Column‑to‑detector connections
Multi‑brand column compatibility
High‑efficiency chromatographic separations
Usage Notes
Designed for analytical HPLC applications
Helps reduce extra‑column dispersion effects
Spring‑loaded fittings automatically adjust pilot length
Ideal for laboratories using multiple column brands
Replaces conventional tubing and ferrule assemblies
Compatible with standard 1/16" HPLC tubing systems
